Container Room Bracket Rack Roll Forming Machine
Used For support Container Room / Board Room
A: Roll forming main machine
1: Coil width: adopt profile, and changing size adopts adjusting the ring or spacer
2: working speed: 12-15m/min (not contain cutting and punching)
3: roll station: 15 stations
4: material of roller: GCR155:material of main shaft:45﹟steel diameter roller: Ф65mm
6: main power: 11 KW motor. (built in machine)
7: forming thickness: 1.5-2.0mm Q235
8: Transmission: by single Chains 1.5 inch
9: feeding and guide: surface polished and coated with chrome
Composition of machine
| NO. | Name | Unit | Qty |
| 1 | Roll forming main machine | Set | 1 |
| 2 | Manual Uncoiler | Set | 1 |
| 3 | Control panel | Set | 1 |
| 4 | Hydraulic station | Set | |
| 5 | Manual out table | Set | 2 |
| 6 | Spare tools | Box | 1 |
Technological process
Uncoiling—Feeding—Leveling-----Roll forming— Revising—-Cutting—Products
Profile (basis on customer’s require to design)

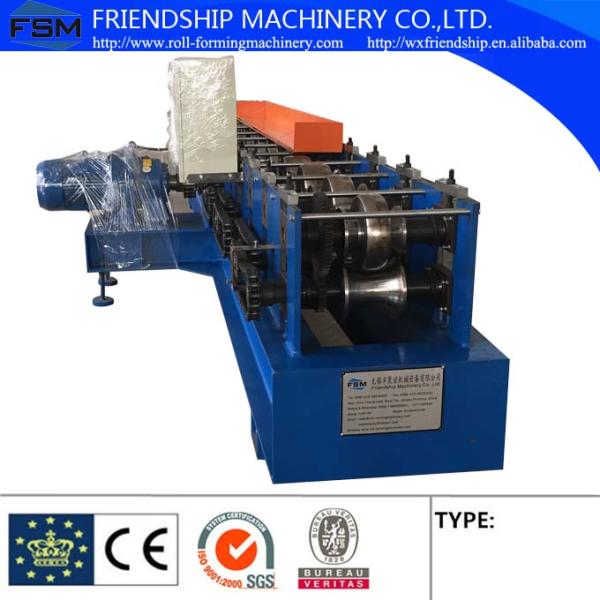

Pictures of machine
Introduction of company
We, Friendship Machinery Co.,Ltd, attaches great importance on technology innovation,progress has been made on scientific management as well as Co.,culture.China leading expert in designing and manufacturing equipments for welding and cutting, automation system and metal works. We use and produce high-technology utilizing the most available robotic and automatic techniques. Every work is uncompromisingly designed to improve our clients' competitiveness and productivity.
We invest more on developing roll forming machine such as Metal roof & wall panels machines,C&Z purlin machines drywall Stud-track forming machines,Metal decks machines,No-girder and Column curves forming machine,Guard rails forming machines,Downspout pipes forming machines and so on.With fast development ,very short period for construction and beautiful external appearance,as well reasonable price was occupied in the market of building industry.
EXCELLENT QUALITY AND COMPETITIVE PRICE!
CHOOSE US , CHOOSE THE BEST!
Thank you for your time!
