0.3MM - 0.7MM Corrugation Sheet Roll Forming Machine Line With PLC System

Product Categories

FRIENDSHIP MACHINERY CO,LTD

Contact Now

Name: 03MM 07MM Corrugation Sheet Roll Forming Machine Line With PLC System
Brand: Friendship
Price: 1 USD

Place of Origin : China

Brand Name : Friendship

Certification : ISO

MOQ : One set

Price : as per client requirements

Packaging Details : plastic film or plywood case

Delivery Time : 60days

Payment Terms : T/T or LC

Supply Ability : 100 sets per month

Model Number : FSM-46

Tensile strength : 235Mpa

Rolling speed : 15m/min

Main component : PLC, frequency convertor, touching screen, encoder

Weight : Abt.13T

Cutting type : Hydraulic cutting

Power and strength : 3.5KW, 16Mpa

Contact Now

0.3MM - 0.7MM Corrugation Sheet Roll Forming Machine Line With PLC System

Technical proposal

Name	Item	Specification
Coil requested	Material	Color steel, galvanized steel
	thickness	0.3-0.7mm
	Tensile strength	235Mpa
	Coil width	1220mm
Decoiler(1 unit)	Type and weight capacity	Manual decoiler, 5T
	Inner diameter	498-508mm
	Outer diameter	Max:1800mm
Rollforming machine (1 unit)	Rolling speed	15m/min
	Motor	7.5KW, 3phase, 60Hz, 380V
	Rolling step	17
	Driving system	Chain transmission
	Structure of machine body	Entire wall steel structure
	Material of roller	45# steel, chromed thickness0.05mm
	Diameter of shaft	80mm
	Dimession	Abt.12m1.8m1.6m
	Weight	Abt.13T
Electric control cabinet(1 unit)	Main component	PLC, frequency convertor, touching screen, encoder
	Cutting and length measurement	Automatic stop to cut, encoder
	Brand	From Japan, can be chosen by client
Hydraulic station (1 unit)	Power and strength	3.5KW, 16Mpa
Cutting machine(1 unit)	Material of blade	GCr12 mov steel, heatment and hardness up to HRC58-62
Cutting machine(1 unit)	Cutting type	Hydraulic cutting
Run out table(1 unit with 4pics)	Size	1.2m0.7m1.2M

Processing flow:

Manual decoiler----feeding&guiding----rollforming----hydraulic cutting--- run out table

Application:

The roof panel used as the roofing of factory, garage,warehouse, reliable and safety installation is easy to realize.

Good toughness: with super toughness, Tere is no necessary to do any treatment amontg the nail hole, it is sealing and can prevent leaking water.

Corrosion resistance: strong acid, alkali, salt, anti-static, anti-vapor corrosion, etc.

Engineering Project:

0.3MM - 0.7MM Corrugation Sheet Roll Forming Machine Line With PLC System

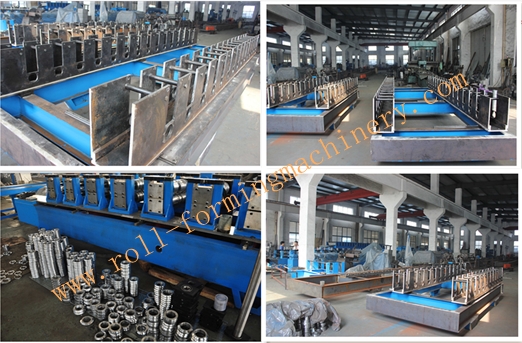

Machiner Factory:

0.3MM - 0.7MM Corrugation Sheet Roll Forming Machine Line With PLC System

Product Tags:

corrugated roll forming machine
